X-Pro Digital Image Recorder

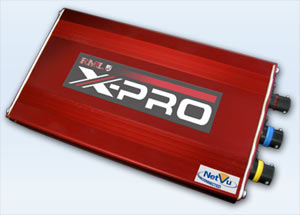

X-Pro Digital Image Recorder, base unitOne of the most impressive outcomes of the racetrack partnership between CCTV specialists AD Group and RML has been the development of the X-Pro Digital Image Recorder (DIR).

This multi-channel digital recorder has been specifically designed for motor racing and rallying applications, and draws upon the world-beating experience and innovative technology devised by AD Group. Combined with RML’s motorsport pedigree and understanding, and tested to extremes after six years of some of the most demanding track conditions imaginable, the X-Pro DIR is probably the best on-board CCTV package available in motor racing today. To see just how effective it is, and the kind of rigorous conditions the X-Pro DIR has to withstand, view the footage at the bottom of this page.

X-Pro Digital Image Recorder, still imageFully network-capable and using the Internet standard TCP/IP protocol, the X-Pro DIR can be readily accessed via a standard Ethernet connection (10BASE-T and 100BASE-T compatible). Its ability to multiplex and record from up to 8 video cameras¹ whilst also handling 2 audio channels, makes the X-Pro DIR one of the most powerful race recorders available today.

X-Pro Digital Image Recorder, tested and developed by RML AD GroupThe unit can be configured to record using either the MPEG4 or M-JPEG format at up to 100 frames² per second on a standard removable Compact Flash (CF) Card. X-Pro DIR can also apply different recording rates that allow more important cameras to be prioritised in the recording sequence.

The system can be further configured to alter the recording speed from each of the camera channels by means of three ‘Event’ inputs, making it possible to record any incident at a much faster rate than normal. For example, a camera in the engine bay could be switched to a higher recording rate if the engine oil pressure drops below a preset ‘alarm’ level.

Aside from being able to monitor car performance from previously unimagined angles, one of the greatest strengths of the X-Pro DIR is as a driver training aid. RML’s driver pairing of Thomas Erdos and Mike Newton use footage drawn from on-track practice sessions to improve driving techniques and enhance their understanding of new, and even familiar circuits. Mike attributes his race-on-race personal improvements to the X-Pro DIR.

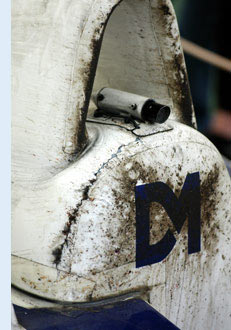

With RML AD Group's transition from open-topped prototype racing to enclosed coupé (2008/2009), the value of the X-Pro DIR as a means of supplying the driver with instant, unimpeded rear-view vision has also been exploited by the team. New armour-encased high definition rear-view camera units have been specially developed to ensure longevity and reliability and have proved invaluable as the team competes in the Le Mans Series and Le Mans 24 Hours. Images are included (right) to illustrate the cockpit and rear deck installations.

  X-Pro DIR Features:
  On-board/in-car digital video footage capturing up to 24 hours of coverage on one Compact Flash card
  Prototype versions developed and tested on RML’s MG Lola LMP2 and Saleen S7R cars throughout 2005 and 2006, and then employed routinely 2007-2009
  Up to 4 cameras recording at one time at 100 fps, or as many as 8 cameras at 50 fps
  Uses standard removable Compact Flash Card for easy transportation, access and exchange of file

    X-Pro DIR Applications:
  Driver training
  Data analysis
  Tyre development
  Mechanical systems investigation
  Aerodynamic testing
  Marketing and PR
  Automotive test and development
  Race incident investigation

The exact specification will depending on chosen unit and the overall capabilities will depend upon the number of cameras connected. See full technical specification below.

For further information about the X-Pro Digital Image Recorder please check out these links:

To visit the X-pro DIR page on the RML factory website and register an enquiry Click here to view Website
To visit the main AD Group corporate website at www.ad-group.co.uk Click here to view Website

To make a specific enquiry for further information, please click here

Model
X-Pro DIR 1-1
X-Pro DIR 4-1
X-Pro DIR 8-1
Power Supply Voltage
10 to 30 volts DC
Power consumption 7.5W
Ignition sensing with auto shut down of system and cameras after preset time. Auto shut down on nominal low voltage detection. Relay controlled power
output for supplying power to cameras
Supply Voltage
10 to 30 volts DC
Power consumption 7.5W
Ignition sensing with auto shut down of system and cameras after preset time. Auto shut down on nominal low voltage detection. Relay controlled power
output for supplying power to cameras
Supply Voltage
10 to 30 volts DC
Power consumption 7.5W
Ignition sensing with auto shut down of system and cameras after preset time. Auto shut down on nominal low voltage detection. Relay controlled power
output for supplying power to cameras
Video Inputs 1 input, 75ohm termination,
composite 1V peak to peak, colour or monochrome PAL or NTSC software configurable
4 input, 75ohm termination,
composite 1V peak to peak, colour or monochrome PAL or NTSC software configurable
8 input, 75ohm termination,
composite 1V peak to peak, colour or monochrome PAL or NTSC software configurable
Record Format M-JPEG, MPEG4 or Multimode M-JPEG, MPEG4 or Multimode M-JPEG, MPEG4 or Multimode
Storage Media Compact Flash
(1Gb standard)
Compact Flash
(2Gb standard)
Compact Flash
(4Gb standard)
Audio Inputs 2 channel line level (1 channel switchable to microphone level with bias) Sensitivity 5mV to 4Vpeak 2 channel line level (1 channel switchable to microphone level with bias) Sensitivity 5mV to 4Vpeak 2 channel line level (1 channel switchable to microphone level with bias) Sensitivity 5mV to 4Vpeak
Connectivity 3 analogue alarm inputs
Digital Input for ignition
sensing
Analogue Input for supply
voltage monitoring
Debug Port (RS232)
10BASE-T & 100BASE-T
Ethernet Port
Monitor Output
3 analogue alarm inputs
Digital Input for ignition
sensing
Analogue Input for supply
voltage monitoring
Debug Port (RS232)
10BASE-T & 100BASE-T
Ethernet Port
Monitor Output
3 analogue alarm inputs
Digital Input for ignition
sensing
Analogue Input for supply
voltage monitoring
Debug Port (RS232)
10BASE-T & 100BASE-T
Ethernet Port
Monitor Output
Environmental -20°C to +70°C -20°C to +70°C -20°C to +70°C
Housing Extruded Aluminium Case Carbon Fibre Enclosure Carbon Fibre Enclosure
Weight 600 g
--
--
Dimensions 185 x 108 x 45 mm
--
--
Interfacing Software X-Pro X-plorer (PC and Mac) X-Pro X-plorer (PC and Mac) X-Pro X-plorer (PC and Mac)

The X-Pro DIR in Action

The footage embedded here from YouTube records part of a lap of the Le Mans circuit from the 24 Hours of 2008. It shows Mike Newton rounding Indianapolis and Arnage before heading off towards the Porsche Curves . . .

Note: The stated weight excludes the weight of the camera(s) and associated loom(s).
Note: The stated dimensions are approximate, and exclude connector or card slot dimensions.
Important: Features and specifications could be subject to change.



PS: Mike did get the car back to the pits!
